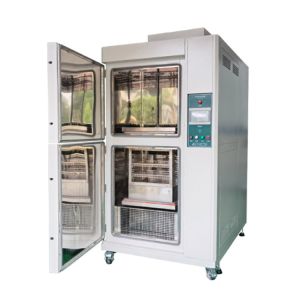

3 Zone Thermal Shock Test Chamber
Environmental Test Systems
ZL-6012B
three-slot hot and cold impact testing ma...
Equipment Summary:
3 Zone Thermal Shock Test Chamber is divided into high temperature
area, low temperature area and test area three parts, each area is
a unique insulation structure, so doing hot and cold impact test.
High-temperature impact test or low-temperature impact test, the
maximum time is up to 9999 minutes, the most cycle time is up to
9999 times. The machine can be automatically or manually cycle the
impact or selectively set the two areas or three areas to impact of
hot and cold. It used binary cooling system that is very
effectiveness for cooling, the cooling system is divided into the
air-cooled and water-cooled. It also can be connected with a
computer, but the record instrument is only for optional purchase.
Color LCD touch-control operation interface with Chinese and
English, easy to operate.
Corresponding Standard:
1.GB/T2423.1-1989 low-temperature testing method
2.GB/T2423.2-1989 high-temperature testing method
3.GB/T2423.22-1989 temperature test
4.GJB150.5-86 temperature impact test
5.GJB360.7-87 temperature impact test
6.GJB367.2-87 405 temperature impact test
Applicable Industries:
Applied to aviation, military, ships, electrical, electronics,
instruments and meters; medical equipment; civilian nuclear energy;
colleges and universities; research laboratories; commodity
inspection, arbitration, and technical supervision departments;
building materials ceramic; petroleum and chemical products, For
high and low temperature impact test.
Technical Parameter:
| Model | ZL-6012-50 | ZL-6012-80 | ZL-6012-100 | ZL-6012-150 |
Size (W*H*D)MM
| Inner box | 500*300*400 mm
| 500*400*400 mm | 500*500*400 mm | 600*500*500 mm |
| Outer Box | 1900*1870*2100 mm
| 1900*2000*2100 mm | 1980*2000*2200mm | 1980*2100*225 0mm |
| Impact Temperature | -40℃~~+150℃ |
| Impact time | 3 minutes to finish the impact temperature |
| High-Temperature Range | 80℃～170℃ |
| Low-Temperature Range | -60℃～-10℃
|
| Heating Rate | 2-3℃/min |
| Cooling Time | 1 ℃ /min |
| Temperature Stability | ±0.5℃ |
| Temperature Accuracy | ±1℃ |
| 3 Temperature Zone | Testing Zone, preheating zone, precooling zone |
Impact Recover Time | High-temperature(150℃)about 30min |
| Low-temperature(-40℃or-55℃or-60℃)about 30min |
| Impact recover time 5min |
| Inner Material | SUS＃304 stainless steel |
| Outer Material | US＃304 stainless steel |
| Insulation | High-precision glass wool + PU foam rubber |
| Cooling System | Copy blowing type or water-cooled, and environmental protection
refrigerant. |
| Controller | Man-machine interface with touch-programmable control |
| Protector | Compressor slide off, overheating, over-temperature, over-pressure,
dry heat, motor overload protection switch |
| Attachment | Compartment frame 2, the test hole 1 |
| Power(KW) | 13kw | 15kw | 18kw | 20kw |
| Power Supply | AC380V±10% 3PH 50/60Hz |
Main Functions:
Three slot hot and cold impact testing machine is used to test the
bad influence of the static state sample in the high and low
temperature changes rapidly environment. Commonly used in
electronic parts, auto parts and high-tech products, etc; and need
to harsh environmental conditions test and high tolerance
requirements inspection.
