Solar Radiation Controlled Environment Chamber , 220V Aging Testing Machine

Ask Lasest Price
Brand Name :	ZL
Model Number :	ZL-6009B
Certification :	CE,ISO
Price :	Negotiable
Payment Terms :	L/C,T/T,Western Union
Supply Ability :	50 Sets
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

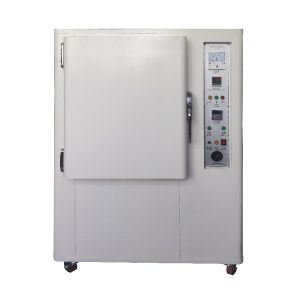

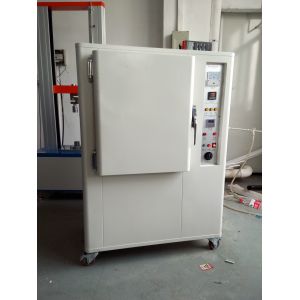

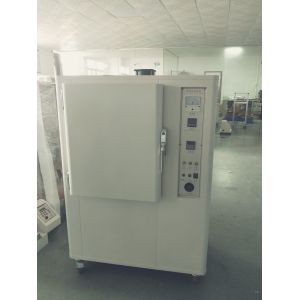

Solar Radiation Controlled Environment Chamber , 220V Aging Testing Machine

Solar Radiation Controlled Environment Chamber - 220V Aging Testing Machine

This controlled environment chamber aging testing machine is specifically designed for solar radiation testing and accelerated aging experiments on rubber, plastic, paper, and various insulation materials. The chamber promotes material deterioration under controlled conditions, enabling researchers to study aging patterns and calculate changes in tensile strength and elongation properties.

Compliance Standards

CNS-3556, JIS-K6301, ASTM-D2436, ASTM D1148, GB, ISO, IEC, UL, BS

Design Principle

The testing chamber operates on the principle that vulcanized rubber products heated at a constant temperature of 70°C for 24 hours simulate approximately six months of natural environmental deterioration.

Key Features

Electronic temperature controller for precise temperature adjustment and maintenance
Three-stage heating control with power regulation for optimized heating efficiency
Hot air circulation system with motor-driven rotary plate for uniform temperature distribution
Integrated exhaust fan and tray system for versatile testing requirements
Time setting controller and high-temperature safety protection system
Thermal insulation and sealed assembly for rapid heating and enhanced safety
Independent lighting control with multi-layer reinforced glass observation window
Dual functionality as an oven to accelerate testing processes
User-friendly operation with minimal maintenance requirements

Technical Specifications

Parameter	Specification
Type	Special 150L
Test Space (L * W * H cm)	50 * 50 * 60
External Dimensions (L * W * H mm)	950 * 650 * 1450
Test Temperature Range	RT to 250°C
Time Controller	0-24 hours / Specified
Temperature Controller	Electronic Type
Electric Heater	Three Stage 3.5KW
Power Supply	220V
Maximum Current	25A
Motor Power	1/8 HP * 1
Machine Weight	70 kg
Testing Accessories	Static test flat plate * 2, Dynamic turntable * 1

Solar Radiation Controlled Environment Chamber - 220V Aging Testing Machine
