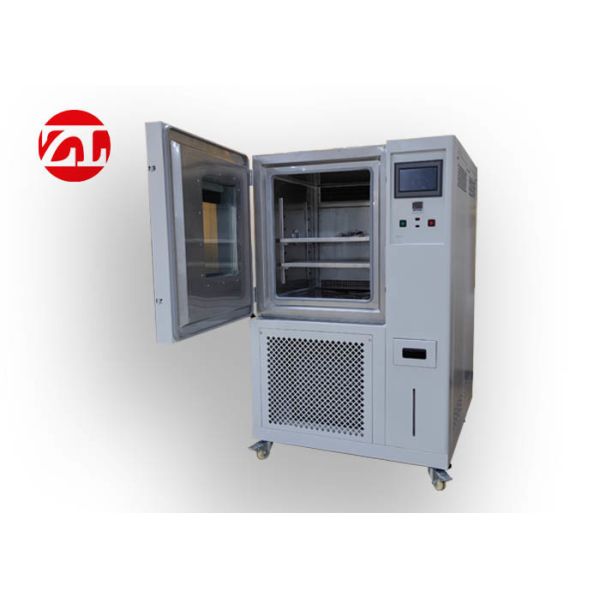

TEMI880 Simulated Temperature And Humidity Climate Control Machine
Machine is made of stainless steel:
powder paint outside the box
ZL-6004B programmable constant temperature and hum...
Equipment summary:
The machine is applied to test the materials in heat-resistance,
cold-resistance, dry-resistance, moisture-resistance. It is simple
to operate and program easy to edit. It can show the set values and
operative time.
Features:
1. High-texture appearance, the surface handled through the matte
stripes, and use of planar non-reactive handles, easy to operate,
safe and reliable.
2. Rectangular complex glass window can be viewed the testing
sample, windows with anti-sweat heater device that prevents water
vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively
isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water
and automatically reuse.
5. Compressor circulatory system from French "Taikang", more
effective removal of oil between the condenser and the capillary
and use environmentally refrigerants (R23, R404, R507).
6. Controller imported LCD display screen can be displayed
measuring values and setting the value and time.
7. Controller with multi-segment program edited, temperature and
humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning
screw fixed position
Constant temperature and humidity test chamber, also known as
"Programmable Constant Temperature and Humidity Test Chamber
FR-1204 Constant Temperature and Humidity Chamber", belongs to the
same series as "High and Low Temperature Alternating Humidity and
Heat Test Chamber/GDS-100". Testing equipment necessary for fields
such as testing and determining the parameters and performance of
electrical, electronic and other products and materials after high
temperature, low temperature, alternating humidity or constant
temperature environment changes.
| Insulation material | High-temperature high-density amino acid ethyl ester foam
insulation materials, |
| Cooling system | Air-cooled/ single-stage compressor(-20℃) ,wind, water
cooled/two-stage compressor(-40℃~-70℃) |
| protection | compressor overload switch, high and low pressure protection
switch, over-humidity-temperature protection switches, fuses,
warning system |
| accessories | recorder(purchase),view window,50mm testing hole,PL
lamp,clapboard,Dry and wet gauze ball |
| controller | TEMI300 digital controller from South Korea |
| compressor | France Tecumceh |
| power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz |
Information and services
1. To provide equipment drawing, electrical schematics, electrical
wiring diagram, consume parts, operating manuals and other
technical information, copy of two, and to provide essential
technical information.
2. Trained how to operate and maintain the equipment, so the staff
grasp to the skill of of equipment.
3. Equipment, one year warranty for free maintenance service: after
one year provide the accessories for paying costs price.
