    IEC68-2 Dual Controller Constant Temperature And Humidity Chamber

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-6004
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 60 Sets
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    IEC68-2 Dual Controller Constant Temperature And Humidity Chamber

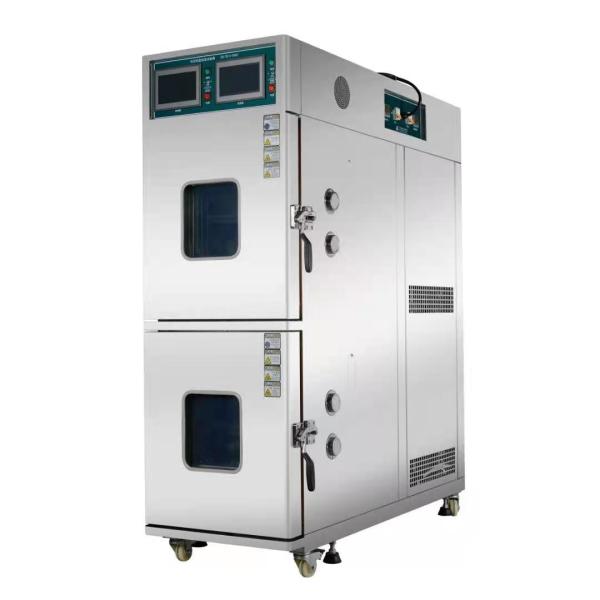

    IEC68-2 Dual Controller Constant Temperature and Humidity Chamber
    This dual controller constant temperature and humidity testing chamber is constructed from stainless steel 304 and designed for comprehensive material testing under various environmental conditions including heat resistance, cold resistance, dry resistance, and moisture resistance.
    Equipment Overview
    The chamber features simple operation and easy program editing capabilities, with clear display of set values and operational time. It provides reliable testing for quality control across multiple industries.
    Compliance Standards
    • International Electrotechnical Commission: IEC68-2-03 (Ca), IEC68-2-01 (A), IEC68-2-02 (B)
    • industrial Standards: MIL-STD-810F (507.4, 501.4, 502.4), MIL-STD883C, MIL-STD810D
    • Japanese Industrial Standard: JIS C60068-2-3, JIS C60068-2-2, JIS C60068-2-1
    • USA Semiconductor Industry: JESD22-A101-B, JESD22-A103-C, JESD22-A119
    • Chinese National Standard: GB11158, GB10589-89, GB10592-89, GB/T10586-89, GB/T2423 series
    • China's National industrial: GJB150.3, GJB150.4, GJB150.9
    Key Features
    • High-texture appearance with matte stripe surface treatment and planar non-reactive handles
    • Rectangular complex glass viewing window with anti-sweat heater and high-brightness PL light
    • Double-insulated airtight container for effective temperature isolation
    • External water supply system with automatic water reuse capability
    • French "Taikang" compressor circulatory system with environmentally friendly refrigerants (R23, R404, R507)
    • Imported LCD display controller showing measured values, settings, and time
    • Multi-segment program editing with quick or slope temperature/humidity control
    • Built-in mobile pulley system with strong positioning screw for stability
    Applications
    Electronic components, plastic products, electrical appliances, instruments, food products, vehicles, metals, chemicals, building materials, aerospace components, and medical equipment.
    Power Requirements
    Three-phase 380V u00b110%, Power frequency: 50Hz u00b12%, 4KW
    Technical Specifications
    ModelZL-80 (A~G)ZL-150 (A~G)ZL-225 (A~G)ZL-408 (A~G)ZL-608 (A~G)ZL-800 (A~G)ZL-1000 (A~G)
    Inside Size WxHxD (cm)40x50x4050x60x5050x75x6060x85x8080x95x80100x100x80100x100x100
    Outside Size WxHxD (cm)100x170x87105x175x97115x190x97135x195x115145x185x137145x210x130147x210x140
    Temperature Range-70u2103~+100u2103(150u2103) (A:+25u2103 B:0u2103 C:-20u2103 D:-40u2103 E:-50u2103 F:-60u2103 G:-70u2103)
    Humidity Range20%~98%R.H. (10%-98%R.H/5%~98%R.H specific conditions available)
    Accuracy/Uniformityu00b10.1u2103; u00b10.1%R.H./ u00b11.0u2103; u00b13.0%R.H.
    Accuracy/Volatilityu00b11.0u2103; u00b12.0%R.H./ u00b10.5u2103; u00b12.0%R.H.
    Heating/Cooling TimeApprox. 4.0u2103/min; approx. 1.0u2103/min (5~10u2103/min specific conditions)
    Construction Details
    Materials & Components
    Inside Material: Stainless Steel SUS 304#
    Insulation Material: High-temperature high-density amino acid ethyl ester foam
    Cooling System: Air-cooled/single-stage compressor (-20u2103), wind/water cooled/two-stage compressor (-40u2103~-70u2103)
    Safety Protection: Compressor overload switch, high/low pressure protection, over-humidity-temperature protection, fuses, warning system
    Standard Accessories: Recorder (optional), view window, 50mm testing hole, PL lamp, clapboard, dry and wet gauze ball
    Controller: TEMI300 digital controller (South Korea)
    Compressor: France Tecumceh
    Power: 1u03a6 220VACu00b110% 50/60Hz & 3u03a6 380VACu00b110% 50/60Hz
    System Configuration
    Wind Circulative System
    • Multi-wing centrifugal rewind fans with aluminum alloy axis for forced convection
    • Stainless steel added long axis construction
    • Stainless steel multi-blade centrifugal wind wheel
    Water Supply System
    • Rear-mounted water tank
    • Automatic water supply
    • Low water level warning system
    Cooling System
    • Compressor: France "Tecumceh" Hermetic Refrigeration Compressor TFHK2522K (two units)
    • Refrigerator: Air-cool condenser coil
    • Evaporator: Pomfret chip multi-segment design
    • Accessories: Imported desiccant cooling, Freon-borne window, US oil-water separator
    • Expansion System: Italian expansion valve
    Temperature & Humidity Control
    • Controller: South Korea TEMI850 color LCD touch screen (English/Chinese)
    • Accuracy: u00b10.5u2103 u00b11% R.H., Resolution: 0.1u2103 1% R.H.
    • 999 program memory capacity with single-stage or multi-segment program control
    • RS-232 communication interface for computer connectivity and data recording
    • Comprehensive safety inspection and fault display system
    • Cumulative operating time display
    • Sensor: PT100 precision sensor
    Service & Support
    • Complete documentation including equipment drawings, electrical schematics, wiring diagrams, and operating manuals
    • Comprehensive operator and maintenance training
    • One-year warranty with free maintenance service
    • Cost-price accessories available after warranty period
    IEC68-2 Dual Controller Constant Temperature and Humidity Testing Chamber
