    JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers

    Ask Lasest Price
    Brand Name : Zhongli
    Model Number : ZL-6004C
    Certification : ISO,CE
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 10~15 days after the order comfirmed
    • Product Details
    • Company Profile

    JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers

    JIS C60068 80L Programmable Constant Temperature Environmental Test Chambers
    Product Overview

    80L Programmable Constant Temperature Environmental Test Chambers With Anti-sweat Heater

    Applicable Industries

    Applied to control product quality across various sectors including electronics, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, and medical care.

    ZL-6004C programmable constant temperature and humidity technical documentation

    Equipment Summary

    This machine tests materials for heat-resistance, cold-resistance, dry-resistance, and moisture-resistance. It features simple operation, easy programming, and displays set values and operative time.

    Construction

    Machine is made of stainless steel with powder paint finish on the exterior.

    Key Features
    • High-texture appearance with matte stripe surface treatment and planar non-reactive handles for safe, reliable operation
    • Rectangular complex glass window with anti-sweat heater to prevent condensation and high-brightness PL lighting
    • Double-insulated airtight container effectively isolates internal temperature leakage
    • External water supply system for easy water supply and automatic reuse
    • French "Taikang" compressor circulatory system with effective oil removal and environmentally friendly refrigerants (R23, R404, R507)
    • Imported LCD display controller showing measured values, settings, and time
    • Multi-segment program editing with quick (QUICK) or slope (SLOP) temperature and humidity control
    • Built-in mobile pulley for easy movement with strong positioning screw fixation
    Compliance Standards
    • International Electrotechnical Commission: IEC68-2-03, IEC68-2-01, IEC68-2-02
    • industrial Standards: MIL-STD-810F, MIL-STD-810D, MIL-STD883C
    • Japanese Industrial Standard: JIS C60068-2-3, JIS C60068-2-2, JIS C60068-2-1
    • USA Semiconductor Industry: JESD22-A101-B, JESD22-A103-C, JESD22-A119
    • Chinese National Standard: GB11158, GB10589, GB10592, GB/T10586, GB/T2423 series
    • China's National industrial: GJB150.3, GJB150.4, GJB150.9
    Technical Parameters
    ParameterSpecification
    ModelZL-80 (A~G)
    Inside Size WxHxD80L (or customized)
    Outside Size WxHxDCustomize
    Temperature Range-70u2103~+100u2103(150u2103)
    (A:+25u2103 B:0u2103 C:-20u2103 D:-40u2103 E:-50u2103 F:-60u2103 G:-70u2103)
    Humidity Range20%~98%R.H. (10%-98%R.H/5%~98%R.H specific conditions)
    Accuracy/Uniformityu00b10.1u2103; u00b10.1%R.H./ u00b11.0u2103; u00b13.0%R.H.
    Accuracy/Volatilityu00b11.0u2103; u00b12.0%R.H./ u00b10.5u2103; u00b12.0%R.H.
    Heating/Cooling TimeAbout 4.0u2103/min; about 1.0u2103/min (5~10u2103/mm specific conditions)
    MaterialStainless Steel SUS 304#
    Insulation MaterialHigh-temperature high-density amino acid ethyl ester foam insulation materials
    Cooling SystemAir-cooled/single-stage compressor(-20u2103), wind, water cooled/two-stage compressor(-40u2103~-70u2103)
    ProtectionCompressor overload switch, high/low pressure protection, over-humidity-temperature protection, fuses, warning system
    AccessoriesRecorder (purchase), view window, 50mm testing hole, PL lamp, clapboard, dry and wet gauze ball
    ControllerTEMI300 digital controller from South Korea
    CompressorFrance Tecumceh
    Power1u03a6 220VACu00b110% 50/60Hz & 3u03a6 380VACu00b110% 50/60Hz
    System Configuration & Software Functions
    A. Wind Circulative System
    • Multi-wing centrifugal rewind fans with aluminum alloy axis for forced convection
    • Stainless steel added long axis
    • Stainless steel multi-blade centrifugal wind wheel
    B. Water Supply System
    • Water tank at the back
    • Automatic water supply
    • Water shortage warning
    C. Cooling System (Diego-style, Single Machine, Refrigerator)
    • Compressor: France "Tecumceh" Hermetic Refrigeration Compressor TFHK2522K (two units)
    • Refrigerator: Air-cool condenser coil
    • Evaporator: Pomfret chip multi-segment
    • Other Accessories: Imported desiccant cooling, Freon-borne window, US oil-water separator
    • Expansion System: Italian expansion valve
    D. Temperature and Humidity Control System
    • Control Specifications: South Korea TEMI880 color LCD touch screen (English/Chinese)
      Accuracy: u00b10.5u2103 u00b11% R.H
      Resolution: 0.1u2103 1% R.H
    • Functions: 999 program memory, single-stage or multi-segment program control, RS-232 communication interface
    • Computer connectivity for monitoring, program operation, data recording, and printing (additional purchase required)
    • Safety inspection and interface devices with fault status display and power cutoff
    • Cumulative operating time display
    • Sensor: PT100 Sensor
    E. Standard Accessories
    • Two adjustable stainless steel shelf boards with variable spacing
    • Perspective vacuum glass windows, explosion-proof type
    • Wide-angle lighting with energy-efficient fluorescent lights
    • Four adjustable fixed wheel axles with control indicator lights
    • One pair of u03a650mm testing holes
    Power Requirements

    Three-phase 380V u00b110%, Power frequency: 50Hz u00b12%, 4KW

    Information and Services
    • Equipment drawing, electrical schematics, wiring diagrams, consumable parts, and operating manuals provided in duplicate
    • Training for equipment operation and maintenance
    • One-year warranty with free maintenance service; cost-price accessories available after warranty period
    Component Specifications
    StructureMaterialModelOriginDescription
    Box ShellStainless Steel SUS304BImportImportAntirust
    LinerStain Steel SUS304BImportImportAntirust
    InsulationRigid polyurethane foam, ultra-fine glass fiberHongkongHongkongInsulation
    DoorStainless Steel SUS304BImportImportGood sealing performance
    View Window38026 insulating glassObserved the testing sample
    FrameStainless steel ringExportExportDiameter 8mm
    Testing HoleDiameter 60MMWire through directly
    Heating SystemHeating pipeStainless steel heat sinkHongkongStorage's temperature rise up
    Air Circulation SystemFanYYF100-25-4SJapanStorage back to ring
    Cooling System CompressorCompressorCAJ2464FranceCooling
    CondenserTecumcehFranceFranceStorage back to ring
    CoolantR23/404/environmentallyUnited StatesUnited StatesCooling
    Electromagnetic Valve1028/3 CastorItalyItalyRefrigerant opening and closing
    Expansion ValveTY2 DanfossUnited StatesUnited StatesRefrigerator throttling
    Filters0835 DanfossUnited StatesUnited StatesFilter oxide cooling pipe
    Humidity SystemHumidity tubeStainless Steel 304ImportEffective protection of laboratory humidity
    Humidity BoxMade by oneselfProvide temperature
    Product Images

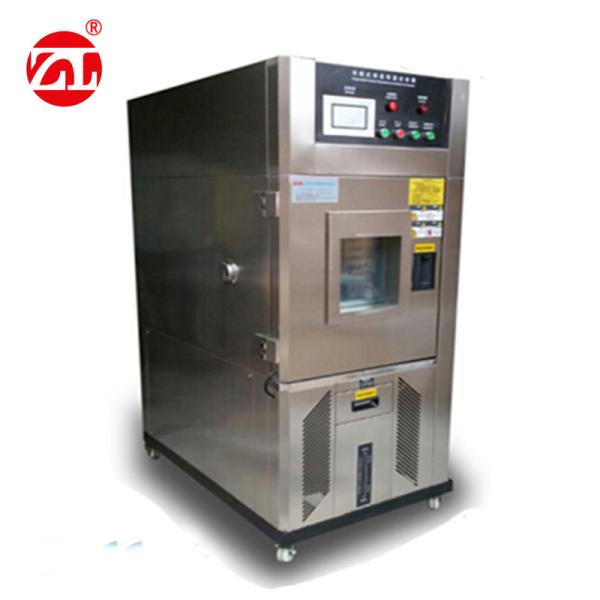

    ZL-6004C Programmable Constant Temperature Environmental Test Chamber Internal view of environmental test chamber Control panel and display of test chamber
