Automatic Tabletop Material LCD Electric Universal Tensile Testing
Machine

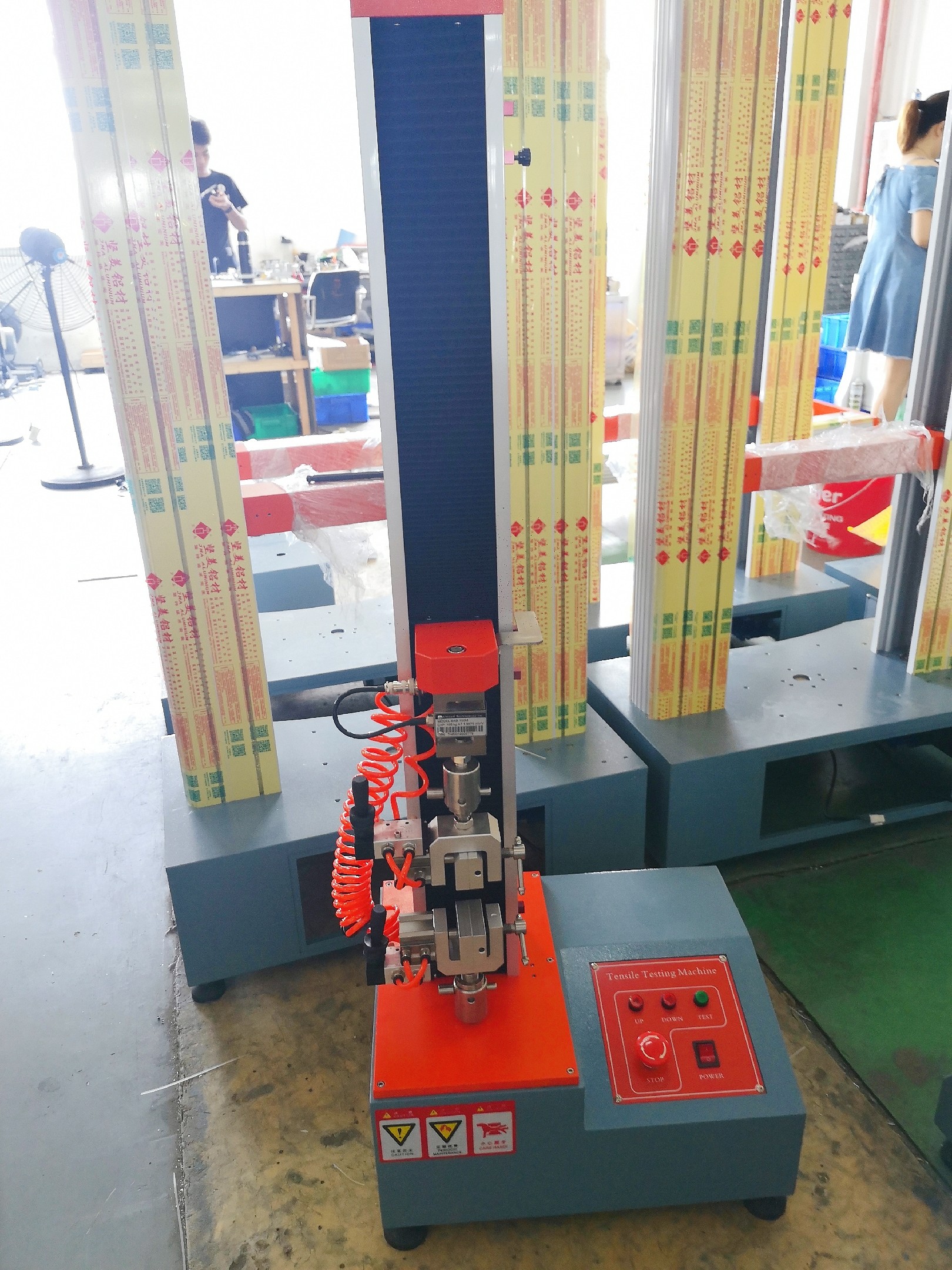

The ZL-8004A electric desktop digital tensile testing machine is a
compact, versatile testing solution designed for quality control
applications. This single-column machine features simple operation
and can be conveniently used on any worktable.
Equipment Overview

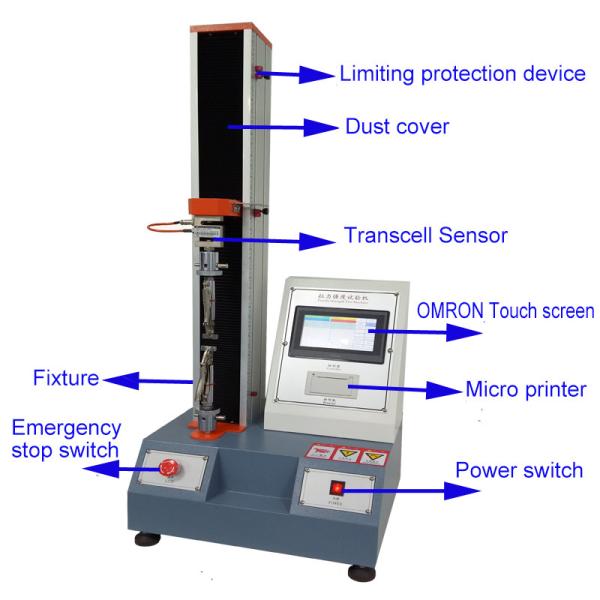

This electric tensile and elongation test equipment features a
straightforward design with simple structure and convenient
operation. Utilizing electronic control systems and a
high-precision load sensor, the machine performs tension or
compression testing through motor rotation, transmission machinery,
and T-screws. Ideal for quality control in production lines, this
series is primarily applied to test both non-metallic and metallic
materials with loads less than 1KN.
Testing Capabilities
This versatile testing equipment can perform tensile, compression,
bending, shear, peel, tear, two-point extended (with extensometer),
and other tests for comprehensive quality control. Suitable for
testing textiles, rubber, plastics, synthetic leather, tape,
adhesives, plastic film, composite materials, electronics, metals,
and various other materials.
Key Features
- Excellent aluminum design with electrostatic spray surface
treatment
- Digital force display via LCD screen with clear tension/pressure
discernment
- Three unit options: N, Kg, Lb, ton with automatic exchange
capability
- LCD with backlight for low-light environment operation
- Single measurement recording of maximum tension and compression
forces
- Automatic or manual zero clearing functionality
- Overload and over-trip safety shutdown system
- Beautiful single-column structure with seating operation
Compliance Standards
GB/T16491-1996 electronic universal testing machine
Industry Applications
Widely used in wire and cable, hardware, electronic and electrical
equipment, packaging, printing, medical equipment, auto parts,
textiles and leather, clothing, shoes, rubber and plastic products,
colleges and universities, research laboratories, inspection
arbitration, technical supervision departments, and many other
industries. This machine serves as essential equipment for quality
management and physical testing applications.
Technical Specifications
| Model | ZL-8004A Electric Tensile and elongation Test Equipment |
| Maximum Load | 1KN high-precision sensors from U.S.A. |
| Capacity Choice | 200N, 500N, 1KN or less than can be self-selected |
| Units | KG, N, LB, TON, can be exchanged |
| Measurement Accuracy | Load cell + ZL-2000 screen ± 0.5% (full range of 5% -100%) |
| Resolution | 1 / 50000 |
| Maximum Test Stroke | About 500mm (excluding gripper, special testing space can be
customized) |
| Test Speed | 50-300mm/min with stepless speed and 5 fixed-speed options |
| Data Sampling Frequency | 200 times/sec |
| Display | YX-2000 dark blue LCD display with membrane touch keys |
| Machine Size | 45*58*135cm (length*width*height) |
| Weight | 75KG |
| Breakpoint Ratio | 0-99% user-configurable for automatic machine stopping |
| Safety Features | Automatic shutdown if overload or over-trip occurs |
| Construction | Column shell made of aluminum material |
| Power System | AC Motor |
| Power | 120W (depending on force requirements) |
| Power Supply | 1Φ, 220V, 15A |
