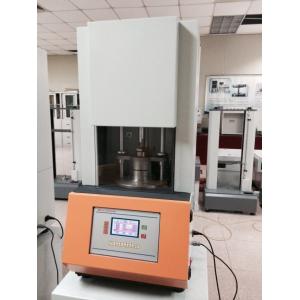

ASTM-D5289 Digital Mooney Viscosity Test Machine Foam Plastic
Rubber Viscosity Meter
Download Brief:
ZL-3002
Mooney Viscometer.pdf
Standards:
ASTM-D2084,ASTM-D5289,ISO-6502, ASTM-D1646
Overview:
This machine is used to measure the viscosity or, coking and
sulphur index of raw rubber in blended rubber. Microcomputer
control, data display, automatic calibration, is the ideal
experimental instrument for rubber industry and scientific research
units. Imported intelligent digital temperature control instrument,
easy to adjust and set, large temperature control range. Computer
control and interface board are used for data acquisition, storage,
processing and printing of test results and curves.
Mooney rubber Viscometer testing machine
It is an instrument used for measuring the mooney viscosity of a
substance (mainly elastomers and rubbers). It contains a rotating
spindle and heated dies, the substance encloses and overflow the
spindle and the mooney viscosity is calculated from the torque on
the spindle.
Test Results
Measure of Mooney viscosity (Large rotor):
MI -- initial Mooney viscosity.
ML – The minimum Mooney value in the last 30 seconds before the
motor stopped.
Mx-t - Mooney value relating to time t.
x-the time of preheat, t-Mooney test time
Stress Relaxation
MRe - Mooney value at the end of stress relaxation.
TRx - time needed for x% torque stress relaxation.
Xy% - % of Viscosity decay after motor stopped y sec.
The value of exponent a, the constant k, the correlation
coefficient r, and the area A .
Graph ( with Viscosity-Time curve and Test temperature curve)
Mooney viscosity graph; Relaxation graph; log Mooney units Versus
Log time graph.
Technical parameter:
| Model | ZL-3002 |
| Control temperature range | Normal temperature~200℃ |
| Temperature display resolution | 0.01℃(0.1 ℃ common type of imported temperature controller
temperature) |
| Temperature control accuracy | ±0.3℃ |
| Calibration accuracy | Mooney value ±0.5 |
| Rotor speed | 2 rotation/ min ±0.02rotation/ min |
| Torque range | Mooney value 0～200 |
| Torque resolution | Mooney value 0.1 |
| Print content | Date, time, temperature, Mooney scorch curve and
MV,T5,T35,T3,T18,@15,@30 |
| Power | 50HZ, ～220V±10％ |
