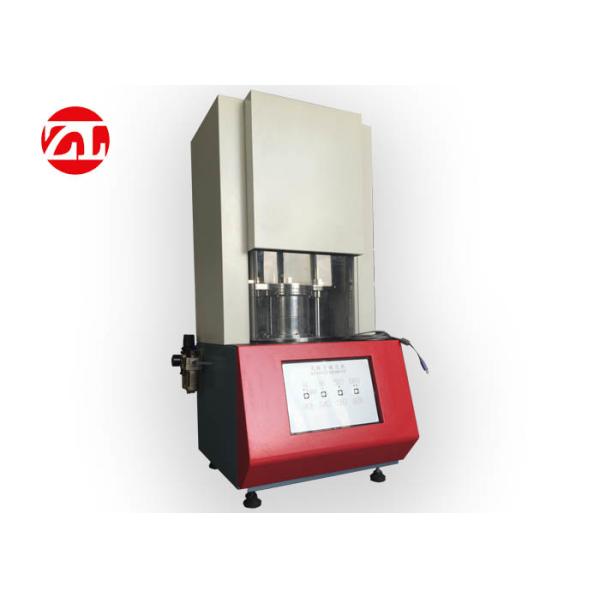

Computer Controlled Rubber Non-Rotor Testing Rheometer Machine
Use:
This machine is designed by GB/T16584<Rubber——use no-rotor
rheometer to test vulcanization characteristic,can meet ISO6502
standard,and can test the data of Italy standards about
T10,T30,T50,T60,T90.This machine can be use test unvulcanized
rubber characteristic,and test out the suitable vulcanizing time.
Used imported intelligent digital temperature controller,easy
adjustment,wide temperature controlling range,high accuracy,good
stability and reproducibility.Use computer to control the machine
and store the test data and print the data.Test curve can be
compared and amplification in software.
Main functions:
Using computer control, after setting the parameters on the
computer, directly control the test parameters of the vulcanizer.
Real-time display of vulcanization curve and temperature curve,
storage of test results, can adjust the comparison of different
test results and display them in different colors.
It adopts single-chip microcomputer control, which includes: host,
temperature measurement, temperature control, data acquisition and
processing, sensors and electrical interlocking components. Among
them, the temperature measurement and control circuit is composed
of a temperature controller, platinum resistance, and a heater,
which can automatically track changes in the power grid and ambient
temperature, and automatically correct PID parameters to achieve
rapid and accurate temperature control. The data acquisition system
and the electromechanical chain complete the automatic detection of
the torque signal of the rubber vulcanization process, and
automatically display the temperature and set value in real time.
After vulcanization, automatic processing, automatic calculation,
printing of vulcanization curve and process parameters. It displays
vulcanization time, vulcanization torch, and has various audible
prompts.
Features:
1. This instrument is really confined mold cavity, and the United
States Alpha (formerly Monsanto) has done. Repeatability, and test
data comparable with the Alpha. At the international leading
position in the same industry.
2. The instrument development platform based on large databases,
temperature control devices using the software to directly control
and collection and processing. Instrument to overcome the general
curing temperature of the shortcomings of using temperature
controller (accuracy poor). The technical leadership of
international new trend.
3. This instrument has statistics, analysis, storage and comparison
functions. Humanized design, easy to operate
4. Using imported high-precision sensors
Download Brief:
ZL-3001 No
Rotor Rheometer.pdf
The main technical parameters:
| Model | Without Rotor Rheometer Rubber Testing Machine |
| Temperature tester | Room temperature to 200°C |
| Temperature accuracy | ≤ ±0.3°C |
| Temperature resolution | 0.1°C |
| Torque range | 0-5N.M,0-10N.M,0-20N.M |
| Torque resolution: | 0.001NM |
| Motor rotating speed | 100 times / min |
| Rotor range | Adopt 4 setting: 25, 50, 100, 200lbs per inch |
| Die cavity frequency | 1.7Hz |
| Sway angle | ±0.5°, ±1°, ±3° |
| Air compression | 0.5Mpa--0.65MPa |
| Ambient temperature | 0-35°C |
| Test result | Printing:date,time,temperature,vulcanization curve,temperature curve,ML,MH,ts1,ts2,t10,t50,Vc1,Vc2. |
| Dimension | 131*56*62cm |
| Power | Single phase, 220V±10%, 50Hz |
| Display | Windows 7 + software |
| Weight | 250kg |
