    16 Inches Rubber / Plastic Two Roll Mill With Explosion - Proof Electrical Box

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-3018
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 40 sets / month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    16 Inches Rubber / Plastic Two Roll Mill With Explosion - Proof Electrical Box

    16 Inches Rubber / Plastic Two Roll Mill With Explosion-Proof Electrical Box
    This industrial-grade two roll mixing mill is engineered for precision polymer processing in rubber and plastics manufacturing. Designed for optimal performance and safety, it features explosion-proof electrical components and advanced control systems.
    Applications
    Widely used in rubber and plastics industries for polymer mixing applications including PVC processing, color master batch production, and comprehensive material compounding.
    Machine Overview
    Engineered for superior performance in masticating and kneading natural rubber, synthetic rubber, EVA, and PVC pellets with various chemical materials. Essential for plastic processing, hot milling, and mixing operations in rubber product manufacturing facilities.
    Key Features
    • Multiple roll gap adjustment methods: manual or electric operation
    • Integrated brake and emergency stop systems for personnel and equipment safety
    • Customizable speed ratios tailored to specific formulas and processing requirements
    • Automatic oil or grease lubrication systems for easy maintenance and machine protection
    • Versatile roll constructions: drilled roll, bored roll, grooved roll options
    • High-hardness chilled cast alloy iron rolls (70HB)
    • Annealed welded frame construction for stress relief and durability
    • Human-centered control system design for operational safety
    Intelligent Control System
    Advanced PLC control system with comprehensive data monitoring and recipe management capabilities:
    • Real-time data recording and export for kneading time, temperature, pressure, current, torque, and recipe codes
    • 20 programmable mixing steps with 20 recipe storage spaces
    • Remote process recipe import and data monitoring via Ethernet communication
    • MES integration capability with reserved control points and touch screen interface
    Technical Specifications
    ModelZL-3018-76ZL-3018-120ZL-3018-160ZL-3018-200ZL-3018-230ZL-3018-300ZL-3018-400
    Diameter of roll (mm)76120160200230300400
    Length of roller face (mm)300350350500650650900
    Mixing Capacity (kg)0.002-0.60.002-20.002-2.80.002-50.005-101-155-30
    Front roll surface speed (rpm)19191919191919
    Friction ratio1:1.301:1.351:1.351:1.351:1.271:1.271:1.27
    Roll gap range (mm)0-30-60-60-80-120-120-15
    Driving Power (KW)11.52.27.5113037
    Machine weight (kg)160460660860196029603800
    Overall dimension (mm)1100x400x11801100x550x13801200x650x13802200x750x13802200x950x15802600x950x15805295x1789x170
    Heating Mode: Electricity heating, Oil Heating (optional)
    Cooling Mode: Water Cooling (optional)
    Roll Temperature Range: Room temperature - 300℃
    Roll Hardness: HRC 50-60
    Temperature Accuracy: ±2℃ (high accuracy PID micro computer controller)
    Safety Features: 6 safety buttons with optional safety guard
    Power Requirements: 380V 3 phase 50-60Hz

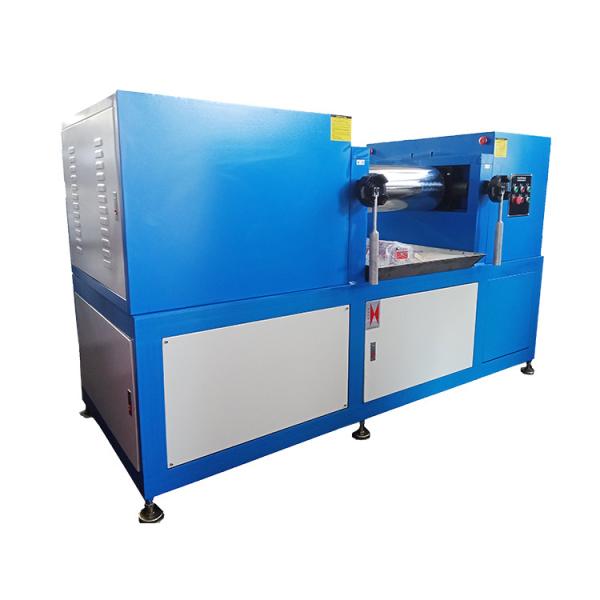

    Industrial two roll mill machine for rubber and plastic processing Close-up view of two roll mill operation and control panel
