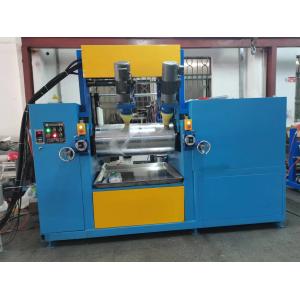

XK-450 Laboratory Rubber Open Mixing Mill Machine PVC Mixer Plastic
Two Roll Mill
Application:
It is widely used in rubbers and plastics industry for polymer
mixing, such as PVC, color master batch. It consists of roll,
bearing, gap adjusting device, electric control system, safety
device, etc.
ZL-3018 Two roll mill.pdf
Introduction:
Abbreviation for open rubber mixer. A rubber mixing machine with
exposed rollers used in rubber factories to prepare masticated
rubber, mixed rubber, or heat-mixed and molded.
Technical parameters:
| | | | | | | | |
| Roll Hardness | HRC 50 ~ 60 |
| Temperature Accuracy | ± 2 ℃ (we adopt the high accuracy PID micro computer controller)| Model | | ZL-3018-76 | ZL-3018-120 | Zl-3018-160 | ZL-3018-200 | Zl-3018-230 | Zl-3018-300 | ZL-3018-400 | | Diameter of roll | mm | 76 | 120 | 160 | 200 | 230 | 300 | 400 | | Length of roller face | mm | 300 | 350 | 350 | 500 | 650 | 650 | 900 | | Mixing Capacity | kg | 0.002-0.6 | 0.002-2 | 0.002-2.8 | 0.002-5 | 0.005-10 | 1-15 | 5-30 | | Front roll surface speed | rpm | 19 | 19 | 19 | 19 | 19 | 19 | 19 | | Friction ratio | | 1:1.30 | 1:1.35 | 1:1.35 | 1:1.35 | 1:1.27 | 1:1.27 | 1:1.27 | | Roll gap range | mm | 0-3 | 0-6 | 0-6 | 0-8 | 0-12 | 0-12 | 0-15 | | Driving Power | KW | 1 | 1.5 | 2.2 | 7.5 | 11 | 30 | 37 | | Heating Mode | Electricity heating , Oil Heating ( option) | | Cooling Mode | Water Cooling ( option) | | Roll Temperature | Room temperature -- 300℃ |
|
| Safety device | It have 6 safety buttons and safety guard is option |
| Machine weight | kg | 160 | 460 | 660 | 860 | 1960 | 2960 | 3800 |
| Overall dimension | mm | 1100x400x1180 | 1100x550x1380 | 1200x650x1380 | 2200x750x1380 | 2200x950x1580 | 2600x950x1580 | 5295x1789 x170 |
| Power | 380V 3 phase 50-60hz |
Advantage Service:
1. We have R&D, designing department which can not only provide
technological machines but also can satisfy special customized
needs of our clients.
2. Over 50 years’ manufacturing experience, advanced machine and
sophisticated handcraft.
3. There are TWO laboratories in our factory: Environmental
laboratory and Physical laboratory.
4. Our factory have adequate stock monthly, which can meet
customers’ urgent needs.
5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base,
equipped with 120 technicians, we are capable to take large budget
project.
Technical Support:
1. SUS Stainless plate is cut by advanced leaser machine which can
ensure accuracy; All machine appearance is anti-rust electrostatic
painting;
2. Imported electronic components:
ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron and
imported compressor:BOEK/TECUMSEH, which can keep the machine’s
service life over 10 years.
