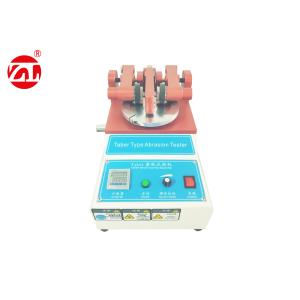

Lab Automatic Abrasion Test Equipment For Leather Shoes Sole
Tester summary:
This tester applied to do the test of wear-resistant in skin,
leather, cloth, paint, paper, flooring, plywood, glass and natural
rubber. The method is using the standard knife cutting the
specimen, and then using the regulated models of grinding wheel
with loading weight to be abrased, Specimen to be removed after
rotation to reach a certain number, observe the condition of the
specimen or compare the weight with the previous materials, For the
choice of grinding wheel models: H18, H22, CS17, S32, S33.
Corresponding standard :
DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470
Applicable industry:
It used in testing the performance of leather products, such as
suitcases, carpets, cardboard, clothing, glass, plastic coating,
ceramic tile, metal plating, paints, varnishes, decorative sheets,
high-pressure sheets, plastics, textiles, flexible floor mats,
traffic paint, anodizing layer, blankets, electronic components,
decorative plates, wax, label, leather, dental materials, car
ornaments, resin, furniture, and scientific research laboratories;
commodity inspection, arbitration, and technical supervision
department.
Testing reference:
| paint | brick | plywood | plastic |
CS10 CS17 | CS17 | S32 S33 | CS17 H18H22 |
Machine Specifications:
| Grinding wheel model | H18,H22,CS10,CS17,S32,S33 |
| Abrasion wheel Center distance | 63.5mm |
| Abrasion wheel and specimens distance | 37, 38 mm |
| Test Speed | 60 R.P.M |
| Test Load | 250g, 500, 1000g |
| Times setting | 0 ~ 999999 times setting automatically shut down |
| Auxiliary accessories | specimen cutters, grinding wheels, pre-sanding paper, vacuum
cleaner. |
| Weight | 20 kg |
| Power | AC 110V/60Hz or 220V/50HZ 2A |
Computational formula:
Abrasion index computational formula=Abrasion loss weight ×100
Test turnover number
Machine Details
