PID Control 150T Plastic Silicone Vulcanizing Hot Press Equipment

Ask Lasest Price
Brand Name :	ZL
Model Number :	ZL-3022C
Certification :	CE,ISO
Price :	Negotiable
Payment Terms :	L/C,T/T,Western Union
Supply Ability :	50 sets per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

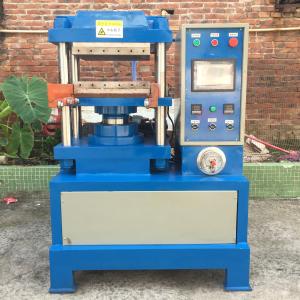

PID Control 150T Plastic Silicone Vulcanizing Hot Press Equipment

150Ton Plastic Silicone Vulcanizing Hot Press Molding Equipment

The vulcanizer is an advanced rubber product hot press molding equipment designed for producing complex shapes, difficult-to-vent, and other challenging-to-mold rubber products, particularly those prone to bubble formation.

150Ton Plastic Silicone Vulcanizing Hot Press Equipment

This equipment features timing mold locking, automatic pressure compensation, precise temperature control, automatic timing, uniform hot plate surface temperature, accurate and intuitive temperature display, stable pressure holding, and safe, convenient operation.

Download Technical Specifications PDF

Structure And Operating Principle

Main Components

The main engine consists of four integrated parts: machine body, oil pump, control valve, and electrical control system.

Fuselage Components: Upper frame, lower frame, fuel tank, heating plate, oil cylinder, and plunger. The four uprights provide 25T tension and serve as guide rails for heating plate movement.
Oil Pump System: Utilizes hydraulic oil pumps imported from Taiwan, supplying oil to the cylinder through one-way valve control.
Control Valve Assembly: Comprises automatic drain valve on the hydraulic station and shock-resistant electric contact pressure gauge, controlling hot plate movement and other functions.

Technical Specifications

Capacity	150T (Customizable)
Temperature Range	Room Temperature to 300°C
Temperature Controller	Microcomputer High-Precision LED Display with Key Setting Input
Timer	LED Display, Range: 0.1S to 99min to 9.9hr
Temperature Control Method	P.I.D Microcomputer Control for Stable Performance and Accurate Temperature Regulation
Heater System	Built-in Cylindrical Heating Mold with Scientifically Coordinated Holes for Fast Heating, Long Life, and Easy Maintenance
Heating Time	Approximately 15 minutes from Room Temperature to 170°C
Hot Press Plate	450*450mm High Temperature Resistant Steel Plate with Carbonized and Quenched Surface for Fast Heat Conduction and Parallel Pressure Distribution
Cooling Temperature Range	Room Temperature to 350°C
Oil Pressure System	Hydraulic Flow Closed Loop Control System with Automatic Pressure Compensation, Presettable Pressurization Times, Strong Load Capacity, and Stable Lifting
Oil Cylinder Stroke	Maximum 200mm
Oil Cylinder Speed	8mm/s
