    Servo Control Universal Testing Equipment Servo Computerized Universal Testing Machine

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-8006C
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 60 Sets
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Servo Control Universal Testing Equipment Servo Computerized Universal Testing Machine

    Servo Control Universal Testing Equipment
    The Servo Computerized Universal Testing Machine is a precision testing instrument that integrates contemporary advanced technology for comprehensive material testing applications.
    Product Documentation
    Key Features
    • Integrated testing capabilities for tension, compression, bending, shear, and ring stiffness
    • Double screw series with integrated control, measurement, and operation structure
    • High precision with wide speed range and compact design
    • Suitable for mechanical performance testing of metal and non-metal materials
    • Ideal for industrial enterprises, research institutions, universities, and quality control departments
    • Real-time data display, recording, and printing capabilities
    Applications
    Suitable for tensile, compression, bending, and creep tests on various materials including plastics, waterproof materials, textiles, paper products, and rubber. Equipped with large pressure plate for direct flat compression, compression recovery, ring stiffness, ring tensile strength, and other specialized tests.
    Compliance Standards
    ISO6892-1-2009, ISO10113-2020, ISO9513-2012, ISO6892-1-2009, ISO898-1-2013, ASTME8(E8M)-2013a, ASTMA370
    Technical Specifications
    Deformation Measurement SystemLarge deformation: min gauge 10mm, range 800mm
    Small deformation: gauge 25/50/100mm, range 5/10/25mm
    Deformation Measurement AccuracyWithin ±0.5% of indicated value
    Test Bench SafetyElectronic limit protection
    Bench LiftingFast/slow two-speed automatic control with jogging
    Return FunctionManual or automatic return to initial position
    Overload Protection10% above maximum load automatic protection
    Fixture ConfigurationOne set of tensile fixtures
    Host Dimensions1040*590*2000mm (L*W*H)
    Power SystemTaiwan Delta AC servo motor + drive + high precision ball screw
    Power Supply220V, 50HZ
    Power Rating0.75KW (varies by force requirements)
    Host WeightApproximately 500 KG

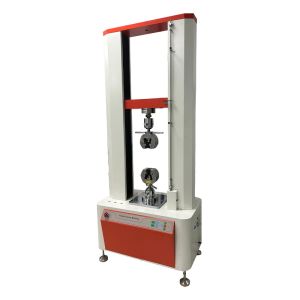

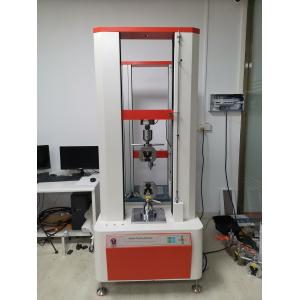

    Machine Image

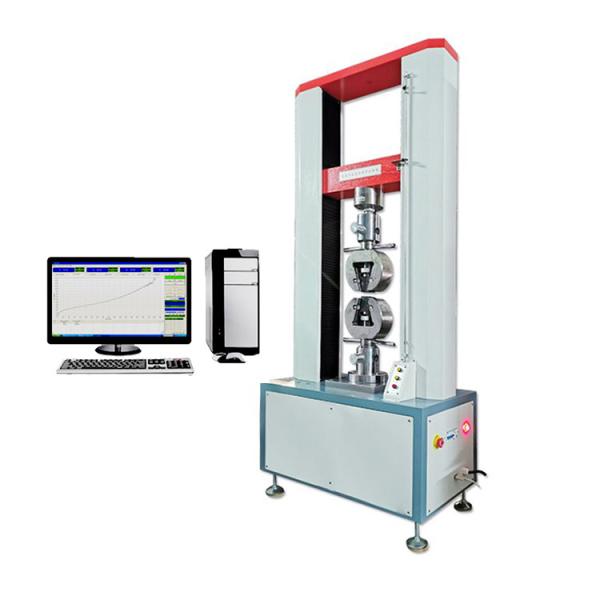

    Servo Control Universal Testing Machine - Professional testing equipment for material analysis
