    30T Universal Material Testing Machine With Computer Servo

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-8006D
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 60 Sets
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    30T Universal Material Testing Machine With Computer Servo

    30T Universal Material Testing Machine With Computer Servo
    30T Universal Material Testing Machine With Computer Servo
    Tensile Testing Machine.pdf
    Project Introduction
    Domestic microcomputer-controlled electronic universal testing machines were first introduced in the early 1990s. To enhance product technical capabilities, our company has integrated advanced foreign technology, significantly elevating our product technology standards.
    Applications
    This universal testing machine performs mechanical property tests on metal and non-metal materials including tension, compression, bending, and shear. With comprehensive attachments, it also tests mechanical properties of profiles and components. Widely used for materials with large deformation and fast test speeds such as ropes, belts, wires, rubber, and plastics. Suitable for quality supervision, research, education, aerospace, steel metallurgy, automotive, construction, and building materials testing.
    Compliance Standards
    Meets GB/T228.1-2010 "Metallic materials - Tensile testing at ambient temperature" and GB/T7314-2005 "Metallic materials - Compression test method" requirements. Supports data processing for GB, ISO, ASTM, DIN standards and custom user requirements.
    Technical Specifications
    Maximum Test Force (KN)300
    Test Force Measurement Range1%-100%
    Relative Error of Test Force Indication Value<±0.5%
    Resolution of Test Force1/500000 of maximum test force
    Deformation Measurement Range1%-100%
    Relative Error of Deformation Value<±0.5%
    Deformation ResolutionMax. deformation 1/500000
    Relative Error of Displacement Value<±0.5%
    Displacement Resolution (mm)0.001
    Speed Range0.01mm/min ~ 400mm/min (Stepless speed control)
    Stretching Stroke (mm)600
    Compression Space (mm)600
    Test Width (mm)550
    Available FixturesTensile, compression, bending, shearing, peeling, tearing, etc.
    Main Machine Dimensions (mm)Approx. 900×600×2000
    Servo Motor Power (KW)3
    Total Weight (KG)500 (Approx)

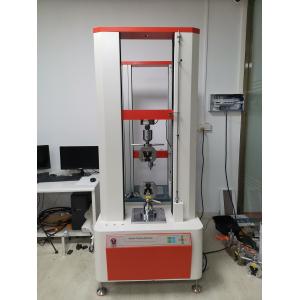

    Machine Image
    30T Universal Material Testing Machine with Computer Servo Control System
