    Double Column Universal Testing Machine Tensile Test With Touch Screen

    Ask Lasest Price
    Brand Name : Zhongli
    Model Number : ZL-8002B
    Certification : CE,ISO
    Price : Negotiation
    Payment Terms : T/T,L/C,D/A,D/P,Western Union,MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 15 days after receiving the deposite
    • Product Details
    • Company Profile

    Double Column Universal Testing Machine Tensile Test With Touch Screen

    Double Column Universal Testing Machine with Touch Screen
    Advanced double column universal testing machine designed for precise tensile testing applications. Features modern touch screen interface for intuitive operation and comprehensive data analysis.
    Download Technical Specifications (PDF)
    Compliance Standards
    ASTM D638-98, ASTM D790-99, ASTM D695-96, ISO527-93, ISO178-93, ISO14125-1998E, ISO604, DIN53-504, DIN53-452
    Technical Specifications
    ParameterSpecification
    Capacity Selection200, 500, 1000, 2000kg
    Force Measurement AccuracyWithin ±0.5% of indicated value
    Display MethodLCD screen English display, film button
    Unit SwitchingKg, lb, N
    Data Sampling Frequency200 times/sec
    Testing Machine ResolutionMaximum load 1/±25000 yards, no division between inside and outside, consistent resolution throughout process
    Load CellBasic configuration: tension and pressure sensors (maximum load)
    Effective Test Width380mm
    Effective Stretching Space800mm
    Test Speed Range50-300mm/min stepless speed regulation with 5-speed constant speed (custom speeds available)
    Displacement Measurement AccuracyWithin ±0.5% of indicated value
    Breakpoint Ratio Setting0-99%, user-configurable break stop time for different materials
    Test Bench Safety DeviceUp and down stroke limiting device
    Overload Protection10% above maximum load, automatic machine protection
    Fixture ConfigurationOne set of tensile fixtures
    Host Size800*550*1800mm
    Host WeightApproximately 180kg
    Power Supply220V/50Hz
    Key Features
    • High-precision force measurement with ±0.5% accuracy
    • Stepless speed regulation from 50-300mm/min
    • Advanced breakpoint detection and safety systems
    • Comprehensive overload protection
    • User-configurable testing parameters
    • Multiple unit conversion capabilities

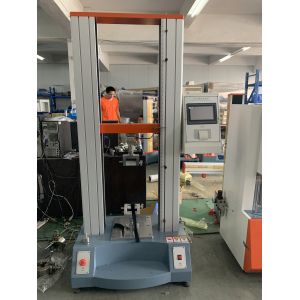

    Double Column Universal Testing Machine front view showing touch screen interface and testing area Close-up view of Double Column Universal Testing Machine control panel and specimen gripping mechanism
