    IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-3029
    Certification : CE,ISO
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : Negotiable
    Delivery Time : 4-7 work days
    • Product Details
    • Company Profile

    IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine

    IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine
    This glow wire flammability tester is designed for comprehensive fire hazard testing of electrical and electronic products, household appliances, and their materials. The equipment simulates thermal stress from heat sources or ignition sources like burning components or overload resistors.
    Application Scope
    Manufactured according to IEC60695-2-10:2000, GB/T5169.10-2006, GB/T5169.13-2006 and GB4706.1 standards, this testing machine evaluates fire hazards in electrical and electronic products, household appliances, and their component materials.
    Technical Specifications
    Working Power SupplyAC220V, 50Hz, ≤ 500W
    Heating Temperature500-1000°C continuously adjustable, Temperature Measurement Accuracy ±10°C
    Burning Time0.1-999.9s, ±0.1s (time range adjustable)
    Ignition Time0.1-999.9s, automatic recording
    Flame Extinguishing Time0.1-999.9s, automatic recording
    Pressure on Sample1±0.2N (with weights), pressure limit depth 7mm
    Key Components & Features
    • Glow wire made of φ4 nickel (80%) and chromium (20%) to specified dimensions
    • Thermocouple: φ0.5 armored nickel-chromium/nickel-aluminum wire, K graduation, UK imported, insulated to ground
    • Automatic detachment from glowing wire after specified burning time
    • Combustion box dimensions: 1100 x 550 x 1150 mm (internal volume >0.5 cubic meters, customizable to 0.75 or 1 cubic meters)
    • Black inner walls with illuminance <20lx, constructed from 1.2mm thick 304 stainless steel
    • Integrated combustion and control box design
    • Adjustable distance between glowing wire and pine board
    • Includes one tray, five silk paper pieces, and one pine board
    Premium Instrumentation & Components
    Timer and temperature control table utilize imported Autonics instruments for precise measurement. Key components include Omron relays, Korean Autonics digital displays, Schneider circuit breakers, and high-quality controls from Shanghai manufacturers. The enclosure is constructed from 1.2mm thick 304 stainless steel plate with surface finishing.

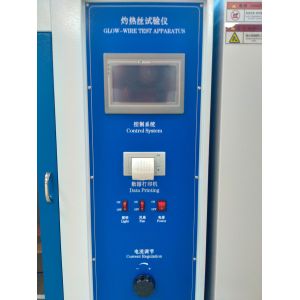

    Machine Image
    IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine
