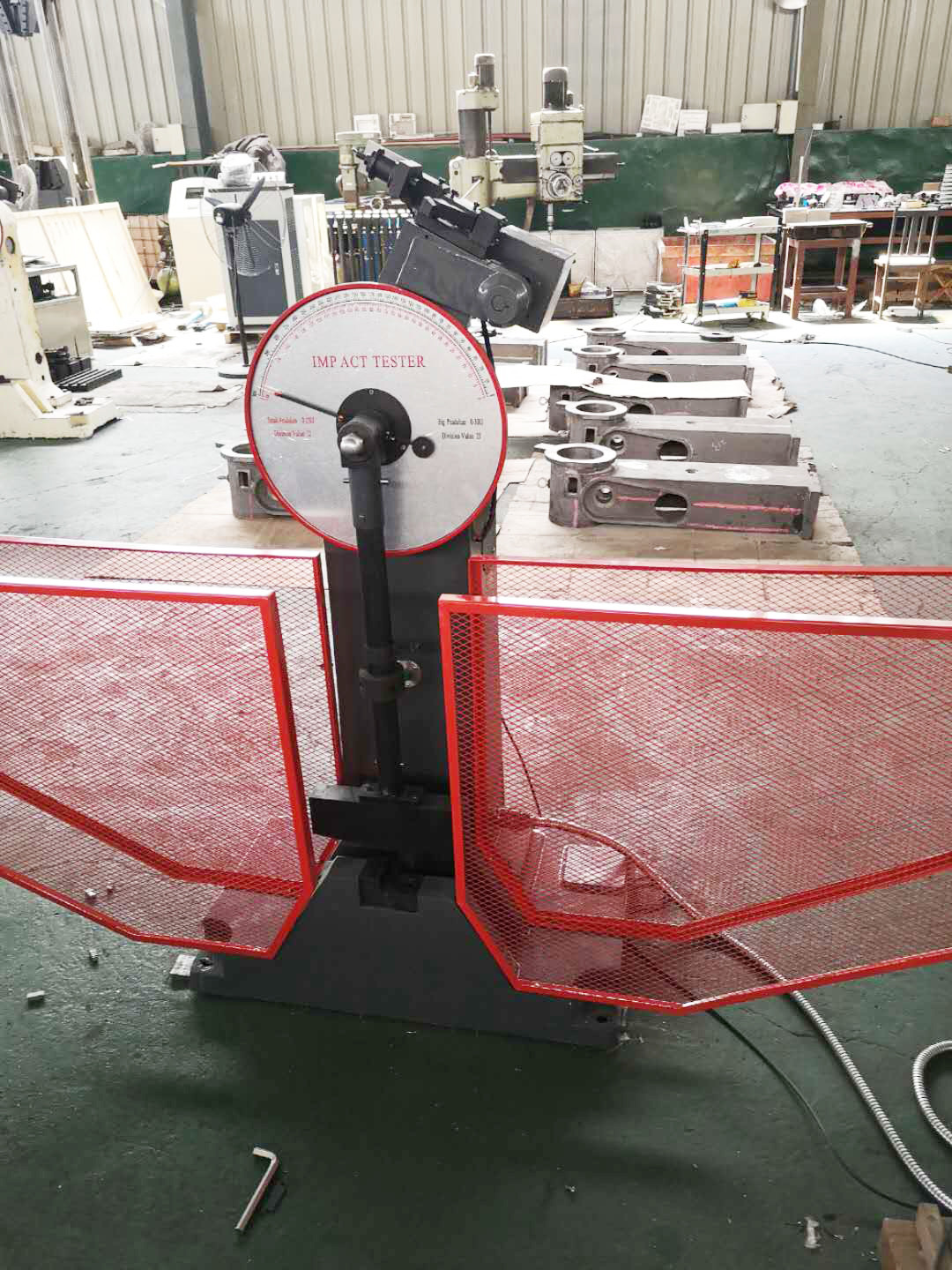

    Computer Controlled Metal Pendulum Impact Testing Machine

    Computer Controlled Metal Pendulum Impact Testing Machine
    Microcomputer Screen Display Automatic Impact Testing Machine
    This advanced testing machine is designed to evaluate the impact resistance performance of metal materials under dynamic load conditions. It serves as an essential testing instrument for metallurgy, machinery manufacturing, and scientific research organizations conducting new materials research.
    Download Rubber Machine Documentation
    Key Performance Features
    • PC microcomputer-controlled semi-automatic operation with digital screen display
    • Automated swing, impact, measurement, calculation, display, and printing functions
    • U-shaped pendulum design ensures precise striking center and pendulum moment accuracy
    • Screw-fixed impact knife for easy and convenient replacement
    • Comprehensive safety features including protection pin and fully enclosed protective cover
    • Equipped with force sensor and angular displacement sensor for high-speed sampling and calculation
    • Automatic pendulum return using residual energy for continuous testing efficiency
    • Remote data transmission capability available upon request
    Technical Specifications
    ParameterSpecification
    Impact Energy150J, 300J
    Pendulum Prelift Angle150°
    Distance from Pendulum Axis to Impact Point750mm
    Impact Speed5.2m/s
    Span of Sample Support40mm
    Jaw FilletR 1-1.5mm
    Impact Blade FilletR 2-2.5mm R 8mm
    Impact Knife Thickness16mm
    Angle Accuracy±0.1°
    Sample Size10 (7.5, 5) * 10 * 55mm
    Dimensions650mm*1960mm*2100mm
    Net WeightApproximately 550Kg
    Power SupplyAC three-phase 380V±10% 50HZ 5A
    Environmental ConditionsNo corrosive media, vibration, or strong electromagnetic field interference
    Compliance Standards
    This testing machine conforms to GB/T3803-2002 "Inspection of Pendulum Impact Testing Machine" and performs impact tests according to GB/T229-2007 "Metal Charpy Notch Impact Test Method" national standards.
