    Charpy Impact Tester Pendulum Impact Testing Machine

    Charpy Impact Tester Pendulum Impact Testing Machine
    The Charpy Impact Tester is a digital display pendulum impact testing machine designed for evaluating the impact toughness of plastic pipes, plates, profiles, engineering plastics, fiberglass, ceramics, cast stone, insulation materials, and other non-metallic materials.
    Product Overview
    This advanced testing machine features automatic pendulum raising and release functionality. It utilizes the pendulum's remaining energy after specimen impact to reset itself, making it ideal for continuous impact testing applications in industrial and manufacturing environments.
    Compliance Standards
    Complies with ISO 180, ASTM 256, and other international testing standards.
    Technical Specifications
    ModelZL-3016A
    Charpy EnergyXJJ-5: 1J, 2J, 4J, 5J
    XJJ-50: 7.5J, 15J, 25J, 50J
    Impact VelocityXJJ-5: 2.9m/s
    XJJ-50: 3.8m/s
    Pendulum Elevation160°
    Center-to-Center Distance of Pendulum SampleXJJ-5: 221mm
    XJJ-50: 380mm
    Pendulum TorquePd1=0.5155N.m | Pd2=1.0311N.m
    Pd4=2.0622N.m | Pd5=2.5777N.m
    Pd7.5=3.8662N.m | Pd15=7.7324N.m
    Pd25=12.8888N.m | Pd50=25.777N.m
    Jaw Bearing Spacing40mm, 60mm, 70mm, 95mm
    Supporting Cutting Edge RadiusR=1mm
    Impact Blade Angle30°
    Impact Blade RadiusR=2mm
    Key Features
    • Advanced photoelectric encoder technology for precise angle measurement
    • Complete digital measurement of material absorption energy and impact intensity
    • Comprehensive energy loss detection and correction functions
    • High precision and stability with extensive test range
    • Versatile testing capabilities through adjustable pendulum weights
    • Suitable for both IZOD and Charpy impact testing methodologies

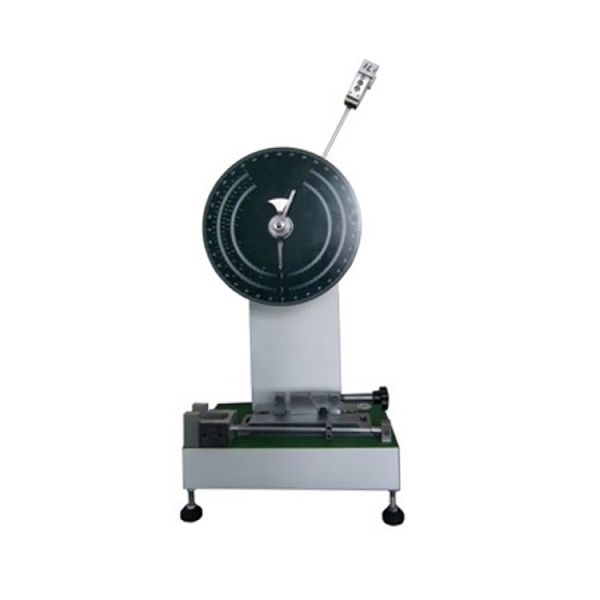

    Charpy Impact Tester Pendulum Impact Testing Machine - Industrial testing equipment for material impact analysis
