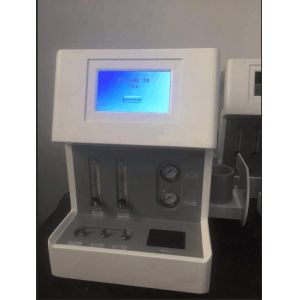

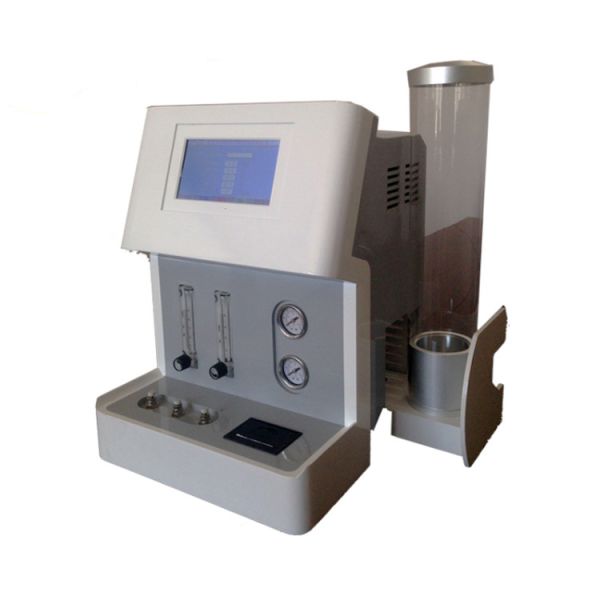

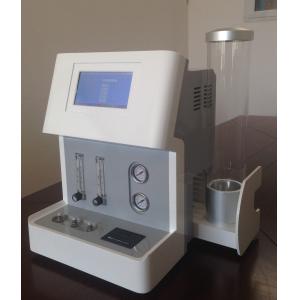

ASTM D2863 ISO4589-2 Intelligent Oxygen Index Meter

Ask Lasest Price
Brand Name :	ZL
Model Number :	ZL-3009
Certification :	ISO
Price :	Negotiable
Payment Terms :	T/T,L/C,Western Union
Supply Ability :	100 set per month
Delivery Time :	3-7 Days

Add to Cart

Product Details
Company Profile

ASTM D2863 ISO4589-2 Intelligent Oxygen Index Meter

The ASTM D2863 ISO4589-2 Intelligent Oxygen Index Meter is designed to evaluate the combustion performance of non-metallic materials under specified test conditions, determining the minimum volume percentage concentration of oxygen required to sustain combustion.

Download Rubber Testing Machine Documentation

Primary Application

This instrument determines the minimum oxygen concentration that sustains combustion of non-metallic materials. It is suitable for oxygen index testing of textiles, plastics, rubber, fibers, wood, insulation materials, and related products.

Key Features

Host enclosure molded from PC/ABS synthetic flame retardant material for superior performance and electromagnetic interference protection
Left-right push-pull combustion table with dual glass cylinders for efficient testing and cooling cycles
Advanced gas diffusion system for uniform mixed gas distribution
High-precision imported British CITY sensors for accurate measurements
PLC with 7-inch HD LCD touch screen for intuitive operation and real-time data display
Built-in microcomputer with automatic data collection, linear analysis, and storage
Integrated timing module for automatic burning time measurement
Built-in gas temperature sensor for real-time monitoring
Automatic test counting module
Integrated thermal printer for test data output
One-button calibration with constant oxygen concentration
Automated solenoid valve control for combustion platform switching

Technical Specifications

Combustion Cylinder & Base	Quartz glass, inner diameter 95mm, total height 450mm (two sets)
Oxygen Concentration Range	0-100%
Resolution	0.1%
Response Time	<3 seconds
Burning Time	0-999.9 seconds, precision 0.1 seconds
Gas Temperature	0-99.9°C, accuracy 0.1°C
Working Pressure	0.1MPa-0.3MPa
Gas Requirements	Industrial grade oxygen and nitrogen (customer provided)
Power Supply	AC220V, 50Hz, 50W

Compliance Standards

ASTM D2863, ISO4589-2
