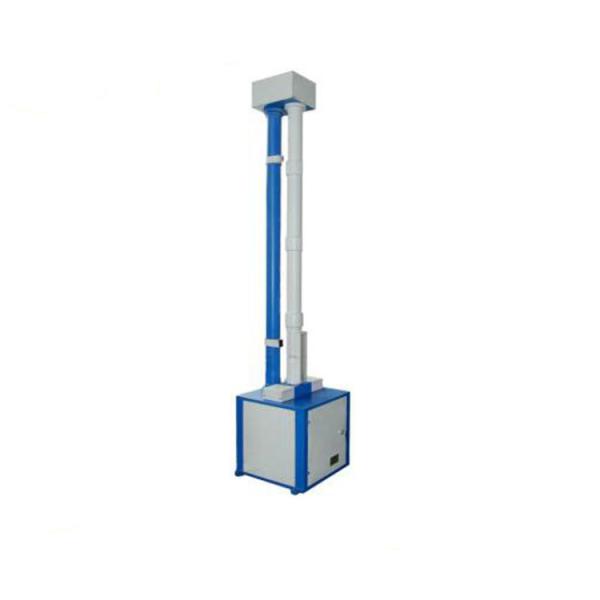

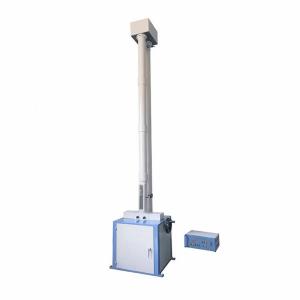

ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine

    Buy cheap ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine from wholesalers

    Buy cheap ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine from wholesalers
    • Buy cheap ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine from wholesalers
    • Buy cheap ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine from wholesalers

    ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-3008E
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 100 set per month
    Delivery Time : 3-7 Days
    • Product Details
    • Company Profile

    ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine

    ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine
    The ASTM D2444 ISO 3127 Pipe Falling Weight Impact Test Machine measures the pressure impact resistance of thermoplastic pipes, pipe fittings, double-wall corrugated pipes, PE water supply pipes, and hard plastic plates.
    Technical Documentation
    Functions
    This Plastic Pipe Drop Hammer Impact Tester evaluates the external impact resistance and pressure impact performance of thermoplastic pipes, pipe fittings, double-wall corrugated pipes, PE water supply pipes, and hard plastic plates.
    Technical Parameters
    ParameterSpecification
    Hammer Head Weight Range0.25-15KG
    Maximum Impact HeightSet arbitrarily within 0.5-2m
    Maximum Sample SizeΦ400mm
    Altitude Positioning Accuracy≤±1%
    Hammer RadiusR5mm, R10mm, R25mm, R30mm, R50mm (or customized)
    Table Travel400mm
    Power SupplyAC220V±10%, 10A
    Key Features
    • Automatic control system with manual hanging and lifting hammer control
    • Adjustable test height from 0.5-2m with digital display
    • Electric-controlled lower space adjustment with automatic sample zeroing
    • Reduces operator workload and improves efficiency
    • Automatic prevention of secondary impact
