    IEC 60332 Bunched Wire And Cable Combustion Test Chamber

    Ask Lasest Price
    Brand Name : ZL
    Model Number : ZL-1048
    Certification : CE,ISO
    Price : negotiation
    Supply Ability : 40 sets / month
    Delivery Time : 30-45 work days
    • Product Details
    • Company Profile

    IEC 60332 Bunched Wire And Cable Combustion Test Chamber

    IEC 60332 Bunched Wire And Cable Combustion Test Chamber
    The IEC 60332 Bunched Wire And Cable Combustion Test Chamber is designed for evaluating the flame retardant properties of vertically installed bundled wires, cables, and optical cables under controlled conditions.
    Scope of Application
    This equipment is suitable for judging and evaluating the ability of vertically installed bundled wires, cables, or optical cables to inhibit vertical flame spread under specified test conditions.
    Compliance Standards
    • GB/T18380.31-2008, IEC60332-3-10-2000: Cables and Optical Cables Fire Test Part 31
    • GB/T18380.32-2008/IEC60332-3-21:2000: Vertical Flame Spread Test Category A F/R
    • GB/T18380.33-2008/IEC60332-3-22:2000: Vertical Flame Spread Test Category A
    • GB/T18380.35-2008/IEC60332-3-24:2000: Vertical Flame Spread Test Category C
    • GB/T18380.36-2008/IEC60332-3-25:2000: Vertical Flame Spread Test Category D
    Technical Specifications
    Instrument Composition
    The system consists of three main components: combustion box, electric control box, and spray purification box.
    Combustion Box Features
    • Top-mounted exhaust port for uniform gas discharge
    • Multiple air intake holes at bottom to maintain oxygen content
    • Water spray device for forced flame extinguishing after specified test duration
    • Front door with high-temperature resistant tempered glass observation window
    Test Chamber Specifications
    Self-supporting box with dimensions: width (1000±100) mm, depth (2000±100) mm, height (4000±100) mm.
    Construction Details
    • Insulated with thermal mineral wool ("mullite thermal insulating fiber")
    • Inner box: 1.5mm thick 304# stainless steel
    • Outer box: electrostatically sprayed steel plate (customer configurable)
    • Internal thermocouple for temperature monitoring
    Ventilation and Safety Systems
    • Smoke hood positioned 200-400mm above combustion chamber outlet
    • Air and smoke mixing baffle for proper gas mixing
    • Exhaust capacity exceeding 1m³/s at normal pressure and 25°C
    • Manual sprinkler system for test termination if required
    • High-pressure water spray gun for post-test cleaning

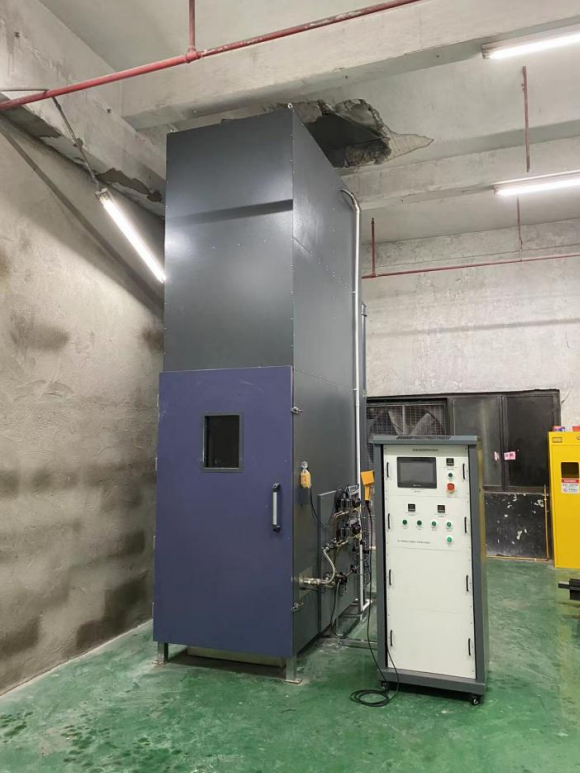

    IEC 60332 Bunched Wire and Cable Combustion Test Chamber equipment overview
