Sensing Projector Impact Specimen U/V Notch Profile Projector Measuring Specimen Projector

Performance Description:

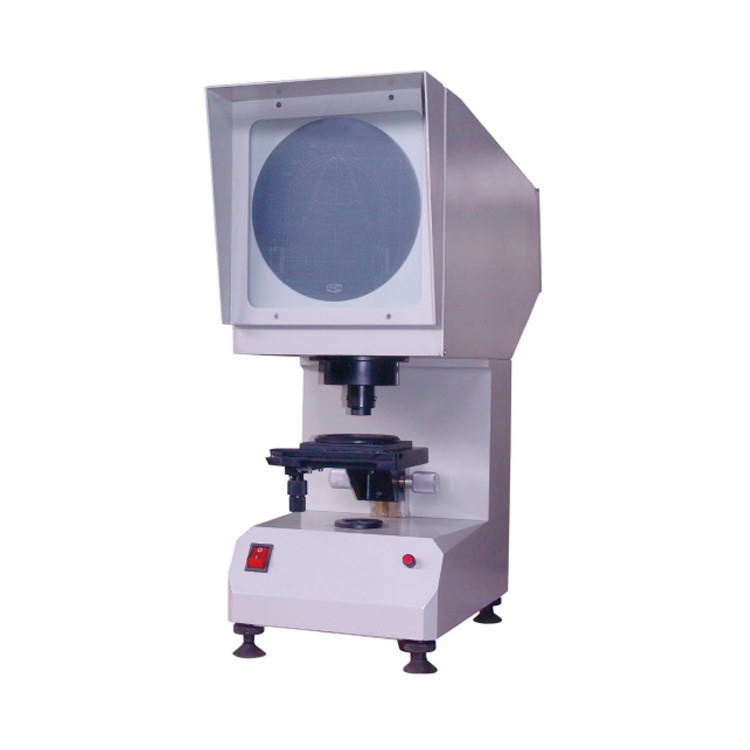

ZL-2123 impact sample notch projector is a special optical instrument designed and developed by us based on the actual needs of domestic users and the requirements for impact sample notch in GB/T229-2007 "Metal Shabi Pendulum Impact Test Method" for Metal Shabi Pendulum Impact Testing Method. This instrument uses optical projection method to enlarge and project the contour of the measured impact sample V or U-shaped notch onto the projection screen, and compare it with the standard sample diagram of impact sample V and U-shaped notch on the projection screen to determine whether the detected impact sample notch is qualified. Its advantages are simple operation, intuitive inspection and high efficiency.

Main Technical Indicators:

1. Projection screen diameter: 200×200mm

2. Workbench size:Square workbench size: 110×125mm,Square workbench diameter: 90mm,Workbench glass diameter: 70mm

3. Workbench itinerary: Longitudinal: ±10mm,Horizontal: ±10mm,Lifting: ±12mm

4. Workbench rotation range: 0～360°

5. Instrument magnification: 50X

Objective lens magnification: 2.5X

Projection objective magnification: 20x

6. Light source (halogen tungsten lamp): 12V 100W

7. Power supply: 220V 50Hz

8. Dimension: 515×224×603mm

9. Weight: 20kg

Main Equipment Configuration:

Projector main unit - one unit

Base adjustment knobs - four pieces

Power cable - one piece

Halogen lamps - two pieces

Flat glass plate - one piece
